Upgrade speaker Frsky Taranis Q X7 spare parts

FrSky Taranis Q X7 upgrade steps:

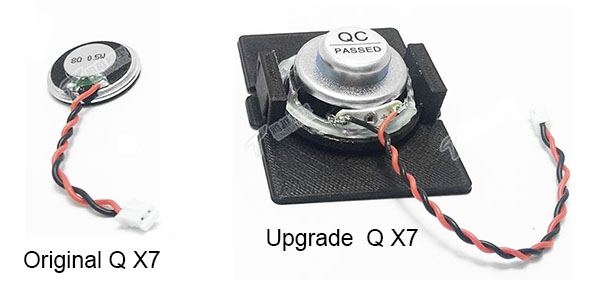

Due to the smaller internal space of the QX7 remote control, we can’t fit our customized speakers at all, so we use another mount to fix it in the slot on the back of the remote control. This is much simpler than the X9DP upgrade steps. Maybe You can complete the upgrade in less than 5 minutes.

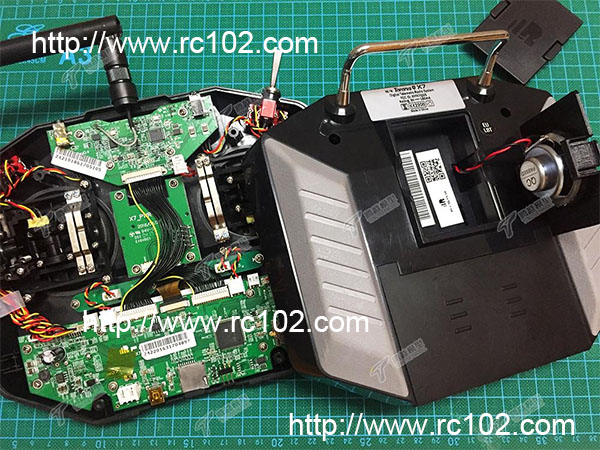

1. Take out the Taranis Q X7 battery (when you are using the controller, please turn it off first), remove the 4 screws on the back of the remote control, and then open the case. You may not see the speaker yet, yes, it is The circuit board on the shell is covered, but it’s okay, we don’t need to remove the original speaker, you only need to unplug the original cable (as shown below)

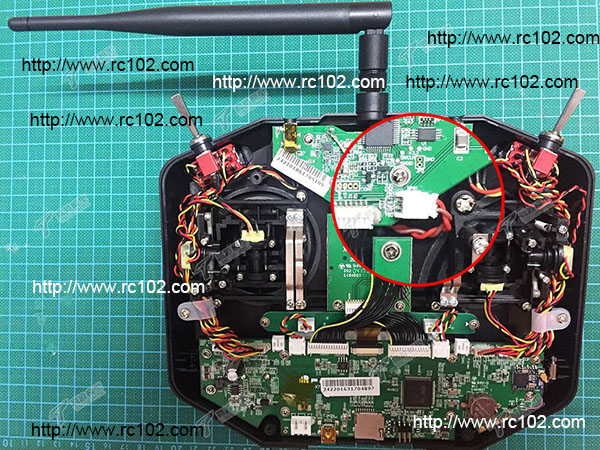

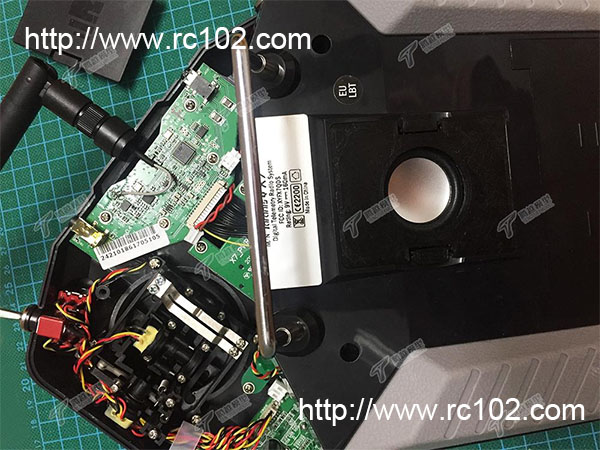

2, Insert the prepared upgrade speaker cable through the slot on the back of the remote control, insert it into the corresponding position of the front shell circuit board (see the figure below), and finally cover the back shell, screw on 4 screws, upgrade success.
