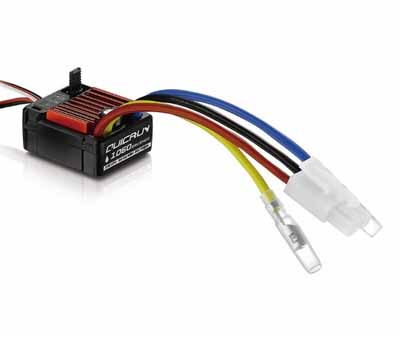

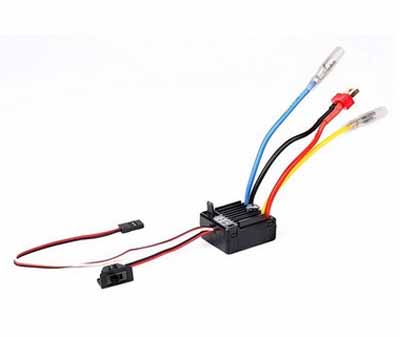

Hobbywing WP-1060 waterproof ESC brushed 60A ESC

Basic parameters: forward 60A, reverse 30A
Scope of application: 1/10 ratio, use 540 or 550 brushed motor vehicles, such as 1/10 electric room/electric power/climbing/big foot/short card
BEC output: 5V 2A
Voltage input range: 2~3S lithium battery (with lithium battery protection, use jumper method to adjust) or: 5~9cell Ni-MH battery
ESC size: 36.5*32*18mm
Weight: 39g
Operation mode description:
F/B/R: forward/brake/reverse, generally use this mode
F/B: forward/brake, this is a racing mode, there is no reverse function
F/R: Forward/reverse, this is a climbing mode, only forward and backward, 100% automatic braking (drag brake) when the throttle trigger is in the neutral position
